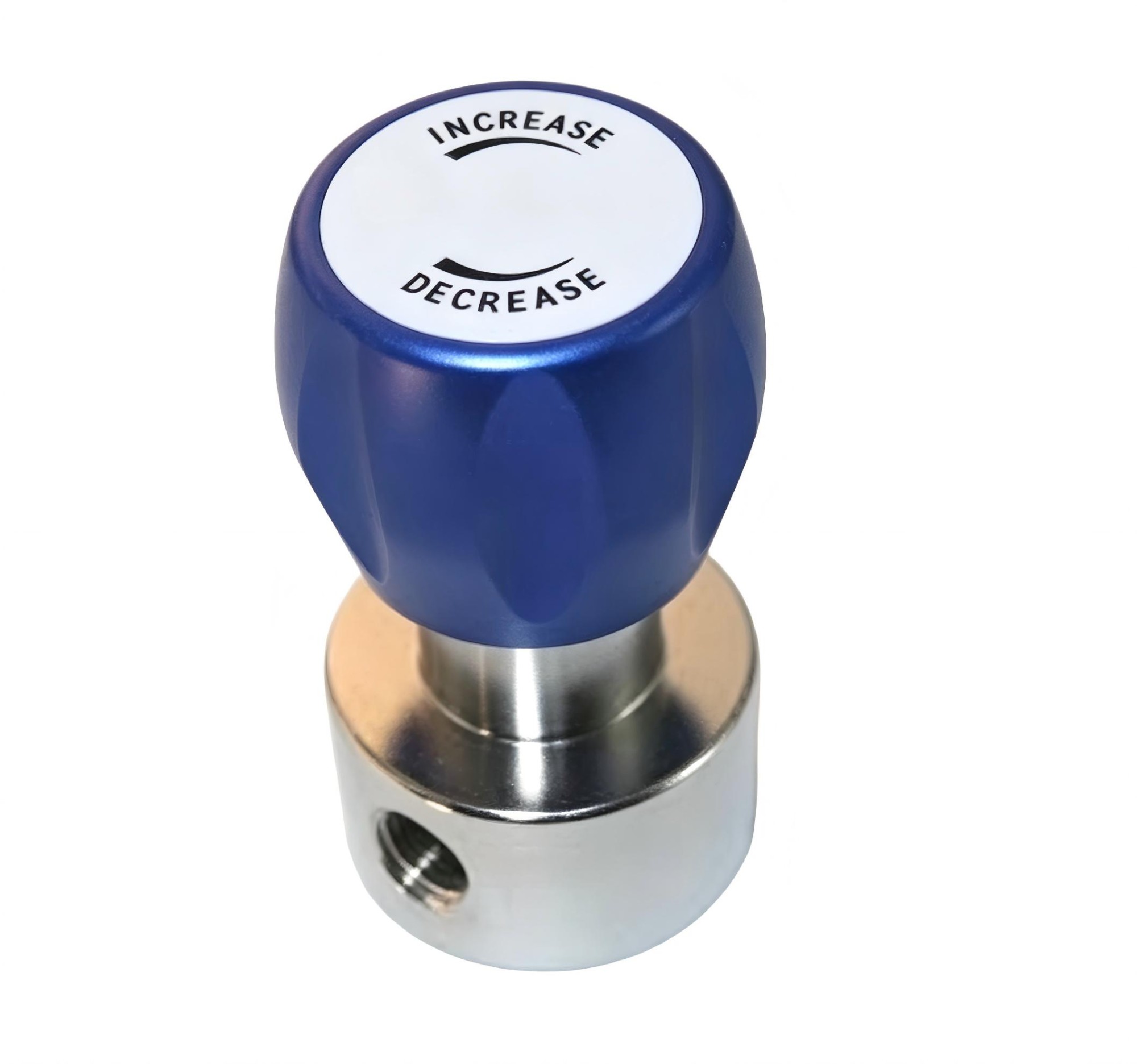

High Pressure Diaphragm Valve YYDV-1

Product Title

High Pressure Diaphragm Valve YYDV-1 | YingYue New Materials

Product Description

YingYue high pressure hard-seal diaphragm valves are available in brass chrome-plated and 316L stainless steel body materials. With a maximum inlet pressure of 300Bar and easy-to-operate handle, these valves feature multiple inlet/outlet thread options. Ideal for laboratory gas pressure control, high pressure sampling, and equipment integration.

Product Features

• Hard-seal diaphragm structure

• Brass chrome-plated: for non-corrosive gases; 316L stainless steel: for corrosive and slightly toxic gases

• Maximum inlet pressure: 300Bar with indicator handle for simple operation

• Multiple inlet/outlet configurations available

Applications

Component testing, calibration systems, laboratory pressure control, high pressure sampling systems, integrated equipment systems

Technical Specifications

• Wetted materials: PEEK, Hastelloy® C276, Elgiloy

• Operating temperature: -30℃ ~ +74℃

• Leak rate: 10⁻⁸ mbar·L/s He

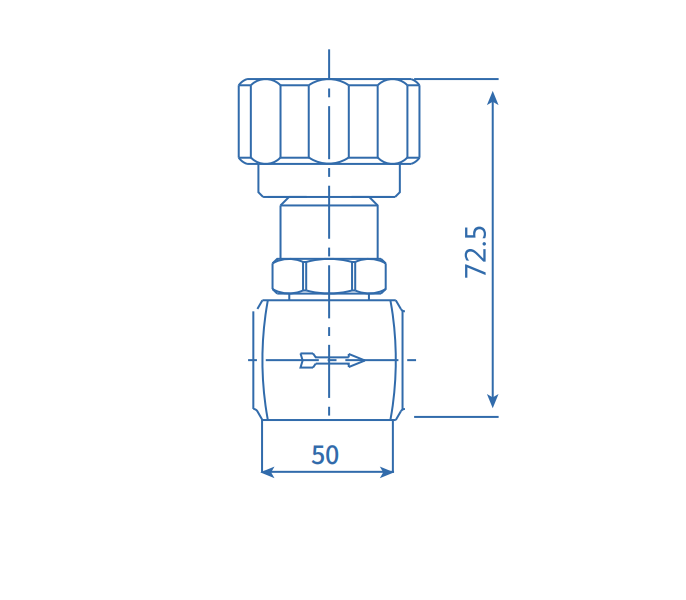

Dimensions

Ordering Code (Model: 01-00 YYDV-1-C)

1. Body material: S=316L stainless steel, C=Brass electroplated

2. Inlet/outlet thread:

￮ 00=1/4" NPT (Female)/01=1/4" NPT(Male)

￮ 02=1/2" NPT (Female)/03=1/2" NPT (Male)
