High-purity electronic grade Silane (SiH4) gas with 99.9999% purity. Available in 47L/440L cylinders with DISS632 valves, compliant with GB/ISO/DOT standards. Ideal for semiconductor manufacturing and precision electronic processes.
Silane (SiH4) Gas | Ultra-High Purity Electronic Grade Specialty Gas
Supplier: Wenzhou Yingyue New Materials Co., Ltd.
Product Overview
Silane (SiH4) is a colorless, pyrophoric and highly flammable industrial specialty gas with unique garlic smell. We supply 99.9999% ultra high purity electronic grade silane gas, strictly produced and purified in accordance with international production standards. All products pass strict laboratory testing, fully meet GB, ISO, DOT global export cylinder standards, and are widely used in semiconductor wafer production, photovoltaic energy, electronic coating and other high-end precision industries. Stable supply, complete specifications and professional export supporting services.
Key Product Specifications
Parameter | Details |
Product Name | Silane (SiH4) Gas |
Chemical Formula | SiH4 |
CAS No. | 7803-62-5 |
EINECS No. | 232-263-4 |
UN Number | UN2203 |
Hazard Classification | DOT Class 2.1 Flammable Gas |
Purity Grade | Electronic Grade |
Standard Purity | 99.9999% |
Melting Point | -185 ºC |
Boiling Point | -112 ºC |
Gas Density | 1.34 Kg/M³ |
Molecular Weight | 32.117 |
Appearance Characteristic | Colorless gas, garlic smell |
Standard Cylinder Pressure | 12.5MPa / 15MPa / 20MPa |
Matching Valve | DISS632 |
HS Code | 2931900090 |
Annual Production Capacity | 20000 tons |
Main Raw Material Composition | Industrial Pure Air |

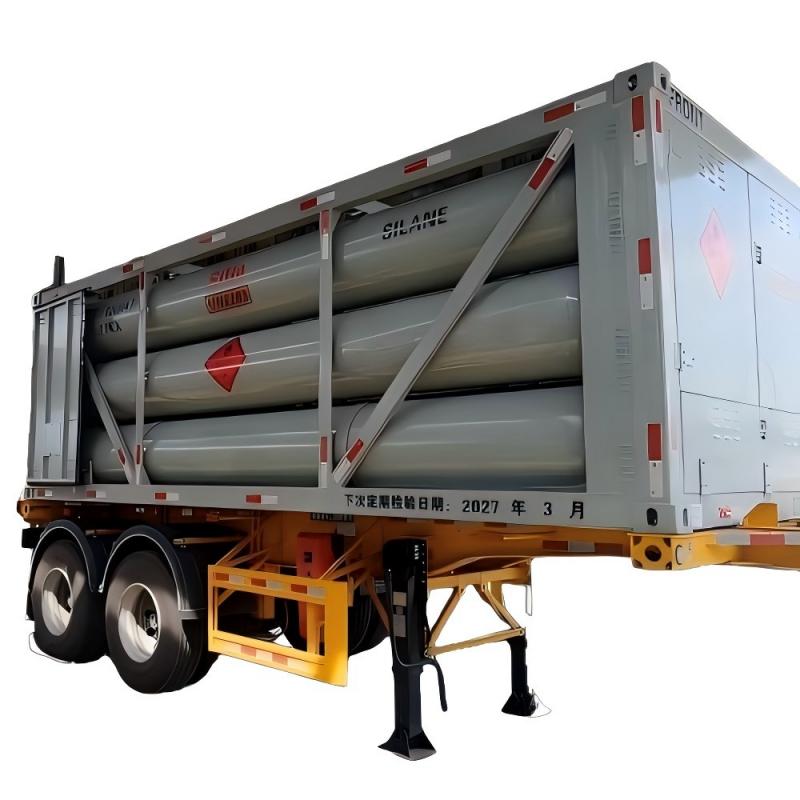

Transportation Package | 47L / 440L / ISO Tank |
99.9999% Purity Impurity Index Standard
Impurity Item | Limit Standard |
Carbon Monoxide | ≤ 0.05 ppm |
Carbon Dioxide | ≤ 0.05 ppm |
Total chloride | ≤ 0.1 ppm |
Methane | ≤ 0.05 ppm |
C2-C4 Hydrocarbons | ≤ 0.1 ppm |
Nitrogen | ≤ 0.5 ppm |
Oxygen | ≤ 0.05 ppm |
Moisture | ≤ 0.1 ppm |
Silyl Ether | ≤ 0.1 ppm |
Methyl Silane | ≤ 0.1 ppm |
Disilane | ≤ 0.3 ppm |
Hydrogen | ≤ 20 ppm |
Aluminum | ≤ 0.02 ppba |
Antimony | ≤ 0.02 ppba |
Arsenic | ≤ 0.02 ppba |
Gallium | ≤ 0.02 ppba |
Boron | ≤ 0.02 ppba |
Phosphorus | ≤ 0.02 ppba |
Iron+Chromium+Nickel+Copper+Zinc | ≤ 1 ppba |
Physical & Chemical Properties
Silane belongs to highly flammable dangerous gas, easy to spontaneously ignite when contacting air, with strong chemical activity. It is slightly soluble in water, stable under dry and sealed storage conditions, and easy to react with oxidants, strong acids and other substances. In actual use and storage, it must be kept away from fire sources, high temperature and open fire, and stored in dry, cool and well ventilated dangerous goods warehouse to ensure transportation and use safety.

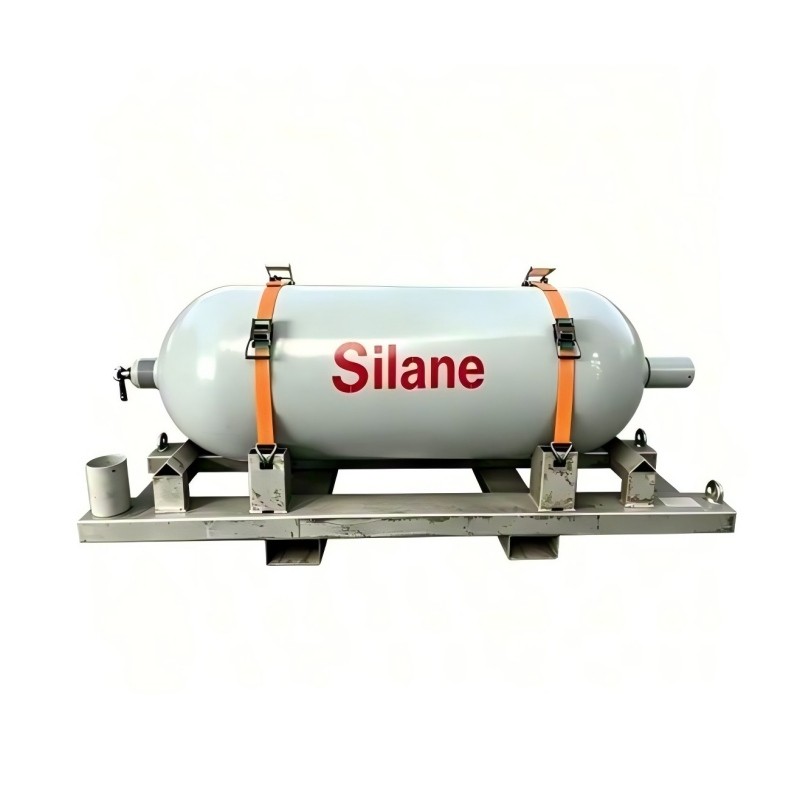

Cylinder Packaging Specification
Cylinder Volume | Supporting Valve | Filling Weight |
47L | DISS632 | 10 kgs |
440L | DISS632 | 120 kgs |
All gas cylinders are manufactured in line with GB, ISO, DOT unified standards, safe and pressure-resistant, with good air tightness, no leakage, suitable for long-distance sea transportation and land transportation of dangerous goods.
Main Application Scope
1. Semiconductor industry: used for silicon wafer epitaxial growth, thin film deposition, chip precision processing and production
2. Photovoltaic new energy industry: core raw material for solar cell and thin film battery production
3. Electronic material industry: used for electronic component surface coating and insulating layer production
4. High-end fine chemical industry: used for synthesis of silicon-containing new materials and high-purity silicon raw materials
Company Profile
We are a professional manufacturer and exporter engaged in high-purity electronic specialty gases and supporting gas equipment. With mature production technology, complete testing equipment and stable supply chain, we have long provided high-standard gas products for global customers. Strict quality control is implemented in every production link to ensure that all exported gases meet international import inspection standards.
Common FAQ
Q: What are your main sales products?
A: We mainly supply specialty gases and gas equipments.
Q: What is your order MOQ?
A: We advice our customer one container at least, anyway we prefer our clients demand.
Q: How long is the delivery time?
A: Normally 30 days after deposit paid.
Q: Which port will you ship?
A: HongKong, QingDao , Shanghai or according to customers' demand.
Q: Can you provide Assurance Trade Order ?
A: Yes if you just purchase empty gas cylinder.
Q: Can we visit factory ?
A: Welcome to our factory , we will serve for you best.
